Top 5 PCB based project of 2020 from PCBWay

Well, 2020 may not have been a year that we hoped. All the dreams that we desired came to a halt. Despite all the setbacks that 2020 gave, the idea to create new projects never went on lockdown. And the innovations always found ways to rise above the pandemic. So, this article presents the best five PCB projects from PCBWay in the year 2020.

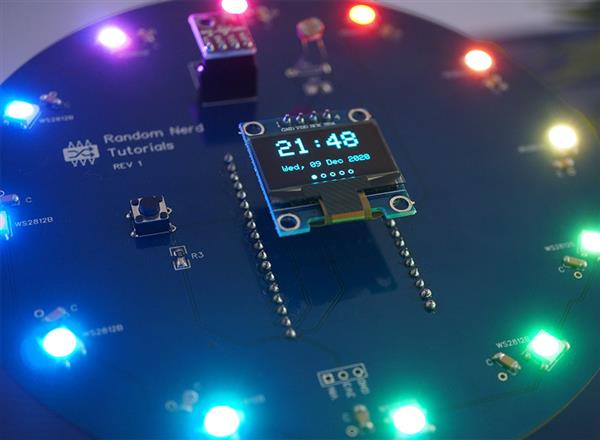

ESP32 Weather Station Interface

ESP32 weather station
ESP32 weather station

The ESP32 based PCB project from PCBWay features a BME280 temperature, pressure, and humidity sensor. The OLED displays the sensor readings while the LEDs blink according to the status of the OLED display. The screen switches after a delay of 15 seconds. A push-button manually switches between the screens and animations.

PCB details of the project

It is a circular two-layer PCB board with a 1.6mm thickness. Its solder mask is blue, while the silkscreen is white.
The following image shows the PCB designed in the software.

PCB designed in software
PCB designed in software

And right here is the image of the high-quality PCB received from PCBWay.

Fabricated PCB from PCBWay
Fabricated PCB from PCBWay

Components Required

ESP32 DEVKIT V1 board
RGB LEDs
Resistors
Capacitor
Tactile switches
BME280 sensor
LDR
OLED display

**To know more about the above project, click on the link below:
  Weather Station

To have more information about how you can order through PCBWay and their process, you can read  High quality and low-cost PCBs at your doorstep through PCBWay!

LEDCADE

LEDCADE
LEDCADE

In simple words, it is a micro arcade 8×8 LED matrix game cabinet. You only have to insert a coin battery. And you are ready to play any of the following games: pong, falling stars, snake, breakout, car race, Tetris, and jump arcade using the tactile switches provided in it.

PCB details of the project

The image shows the high-quality PCB from PCBWay. You can order the same PCB from PCBWay. Otherwise, you can modify it according to your wish. As PCBWay offers different substrate materials. And various options for solder mask, silkscreen, gold fingers, surface finish, via process, finished copper, etc.

The following image shows the PCB designed in the software.

LEDCADE PCB designed in software
LEDCADE PCB designed in software

And right here is the image of the high-quality PCB received from PCBWay.

Received PCB from PCBWay
Received PCB from PCBWay

Components Required

Atmega328
8×8 LED matrix
Piezo Speaker
Battery holder CR2032
Tactile switch

**To know more about the above project, click here: LEDCADE

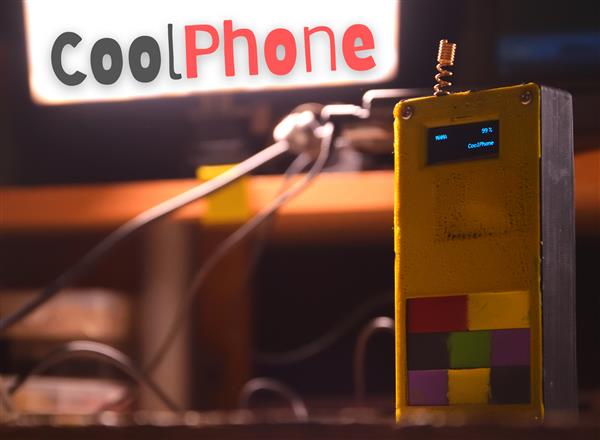

Cool Phone

Cool phone
Cool phone

You might think that all of us have a cell phone with us. What’s the point of making one? Well, it’s an exciting project to learn the basics of electronics and communication. The three basic things to make this cool phone are a microcontroller, a charging, and a programming module. Like an ordinary phone, it requires a SIM card a GSM module to make and receive voice calls. The tactile switches in the PCB board functions as the keypad of the phone.

PCB details of the project

It is a rectangle PCB board ordered from PCBWay. The solder mask is red. The high-quality PCB received from PCBWay is dust and moisture resistant.
The image here shows the PCB design in software.

Designed PCB of the project
Designed PCB of the project

And right here is the received PCB board from PCBWay.

Received PCB from PCBWay
Received PCB from PCBWay

The received PCB is similar to the PCB designed in software.

Components Required

Arduino Nano
SIM800L
Resistor
Transistor
Tactile switches
PCB board from PCBWay

**To know more about the above project, click here: Cool phone



Precise Thermometer

Precise Thermometer
Precise Thermometer

Finding a precise thermometer to measure room temperature can be difficult. But how will you feel when you can design your room temperature at home? The thermometer displays the temperature of a room up to 4 decimal places precisely on an LCD screen.

PCB details of the project

It is a rectangle PCB board with red solder mask. The high-quality PCB received from PCBWay works fine, even at a higher temperature. Being dust and moisture resistant makes it easier to use it in open environment conditions.

The image here shows the PCB design in software.

Designed PCB of the project
Designed PCB of the project

And right here is the received PCB board from PCBWay.

Received PCB from PCBWay
Received PCB from PCBWay

Components Required

Microcontroller
Tactile switches
Resistors
Capacitors
LCD
Transistors
PCB board from PCBWay

**To know more about the above project, click here: Precise Thermometer



400 Watt Stereo Audio Amplifier

400W Stereo Audio Amplifier board
400W Stereo Audio Amplifier board

Do you wish to start your day with a bang? Well, no need to think more. Because this project is going make every morning inspiring. The 400 Watt Stereo audio amplifier board made using PCB board from PCBWay powers two 200 watt speakers easily. And that’s enough to set the whole room up on music beats.

PCB details of the project

It is a purple-colored double-sided PCB with a 1.6mm thickness. The substrate consists of standard FR-4, while the surface finishing includes lead-based hot air solder leveling.
The following image shows the PCB designed in the software.

PCB designed in software
PCB designed in software

And right here is the image of the high-quality PCB received from PCBWay.

Received PCB from PCBWay
Received PCB from PCBWay

Components Required

Resistance
Potentiometer
Transformer
Capacitor
Bridge rectifier
Diode
Transistor
PCB board from PCBWay
**To know more about the above project, click here: Audio Amplifier


Are you an electronics enthusiast but lack funds for your project?

Here’s something PCBWay has to offer!

You can submit your projects in their shared projects column and get a chance to be sponsored! Check out more info here – Non-profit Project Sponsorship
